I call it "Carbon", with the vowels sketched out. A web engine for non-photorealistic, pencil-style rendering of abstract and technical scenes — math and physics constructions today, medical/organic illustration on the roadmap.

Building something? See API.md — a short guide to using Krbn to build scenes and animations.

See the full example gallery → — multiple annotated renders, real STL/OBJ imports, and an animated camera orbit that stays calm (the hand-drawn lines don't boil).

Why a pencil is a rendering problem

Most graphics code answers one question: what color is this pixel? A pencil drawing answers a different one: which lines would an artist draw — and which would they leave out? Krbn is built around that second question.

So it does not render surfaces. It derives, classifies, and styles strokes from geometry. The silhouette of a sphere, a cylinder, a cone is not a mesh edge found by sampling — it is an exact conic, computed in closed form; a torus yields its true quartic. Hidden lines are not z-buffered away but split analytically into visible and ghosted runs, the way a draftsman keeps the far edge of a box alive as a faint line.

Even transparency works the way paper does. There is no alpha channel: cross-hatching is inherently see-through, and the gaps between strokes reveal what lies behind. Shading is hatch density; form is hatch direction, flowing along each surface's own curvature — parallels and meridians on a sphere, poloidal loops on a torus, traced streamlines on an arbitrary mesh.

Exactness is a project value, not an optimization. Intersections are roots of low-degree polynomials; degenerate cases — tangent lines, coincident conics, grazing cusps — are the spec, not edge cases. The payoff is output you can trust: the same scene always emits the same, byte-identical, diffable SVG.

One more inversion: the author supplies semantics, the engine supplies mechanics. You mark what matters — importance, focus, role — and Krbn decides what to draw, what to ghost, and what to abstract away, like an illustrator deciding what the figure is actually about.

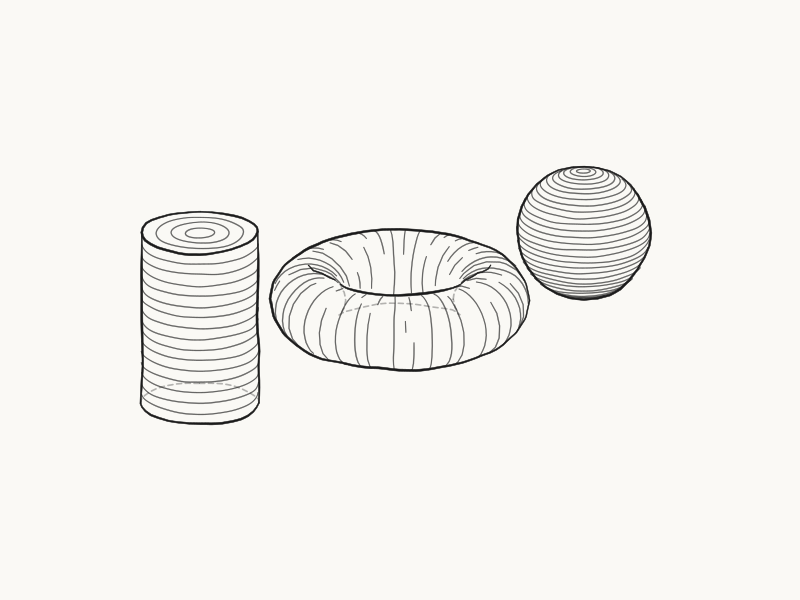

It moves, too — and this is the part stills can't show: wobble is seeded on stable stroke identity, so the hand-drawn lines don't boil between frames. An orbiting camera slides the silhouettes; nothing shimmers, jumps, or re-deals its jitter:

Krbn began as a research prototype and grew into a full pipeline: an analytic primitive catalog and triangle meshes rendering through the same five-stage pass, with hidden-line visibility, suggestive contours, hand-drawn wobble, and variable-width strokes. It is MIT-licensed and written in TypeScript — see the full example gallery, and open a discussion if this problem space interests you.

Genesis imperfecta

This project is a childhood dream, finally built. I always wanted to make something like this, and never had the time to research and learn everything it needed — until a recent medical issue suspended my normal work and, unexpectedly, handed me a few months to invest in the old idea.

What fascinated me from the start is going against photorealism. A human being can convey far more meaning in a drawing than any machine-like photorealistic render — precisely by being willing to go the other way: to renounce detail, to drop precision, even to deliberately introduce impurities and imperfections. Ah — but which detail to drop? Which imperfections to introduce? That is the fascinating part, and it is the question this engine is really trying to answer.

As a kid I wanted to call it genesis imperfecta, for exactly these reasons. What can I say — I was a kid. The name matured into Krbn; the fascination didn't.

Disclaimer — built with AI, unapologetically

Krbn was developed with heavy AI assistance, and there is no reason to hide it. It started as an experiment: how far could a carefully directed human–AI collaboration get on a hard rendering problem? The answer turned out to be — far. The direction, the architecture, and the standards (exactness as a value, degenerate cases as the spec) are human; much of the code was written in collaboration with AI, then reviewed and tested like any other code. The results above speak for themselves.

Status & roadmap live in one place, not here: docs/ROADMAP.md holds the annotated build status and polish backlog, and docs/DESIGN.md holds the design, the implementation-status breakdown, and the hard-parts registry. This README stays high-level.

Features

Each links to a demo in the gallery.

• Analytic primitives — sphere, ellipsoid, cylinder, cone, plane, polygon, line, points, and a torus, each with an exact silhouette (conics; the torus a quartic). (solids, torus)
• Free-form curves — helices, Bézier curves (carried exactly as control points), and function plots, sampled adaptively and occludable like anything else. (curves)
• Triangle meshes — arbitrary organic geometry renders through the same pipeline as the primitives, no fork: silhouette, shading, hidden-line, all shared. Sharp creases on faceted solids are permanent view-independent edges. (knots, creases)
• Exact hidden lines — every contour is split into visible and hidden runs, the hidden parts either ghosted (x-ray) or dropped (opaque) so depth reads at a glance. Even points are occludable. (hidden lines, ghost vs drop)
• Intersection curves — where two surfaces meet (a ball through a plane, two quadrics), the seam is drawn as its own contour. (waterline, quartic)
• Suggestive contours — the extra "form lines" an artist adds where a surface almost turns away, read from mesh curvature (DeCarlo et al.). (suggestive)
• Hatching & tone — single / cross / triple cross-hatch, shaded light→dark on curved surfaces and left flat on flat faces. (hatching)
• Curvature-following hatch — hatch that flows along a surface's own direction field: exact iso-curves on primitives, traced streamlines on meshes. (fields, gravity well)
• Hand-drawn wobble — one per-object knob turns ruler-clean lines sketchy; it bends outlines and hatch together and stays deterministic. (wobble)
• Variable stroke width — solid lines are pencil-like ribbons: bolder when near or important, tapering and swelling with pressure toward the ends. (torus)
• Abstraction — detail too small to matter is dropped, tone is quantized, and coincident lines merge into one clean stroke. (consolidation)
• Highlight — x-ray emphasis: a bold outline inside a soft halo, dashed where something hides it. (highlight)
• Deterministic SVG — pure, seeded vector output; the same scene always yields the same, diffable file.

Why it works this way

• Strokes are the core object. Every visual requirement is a policy over the stroke set, not a shading model.
• Transparency without alpha. Cross-hatching is inherently see-through: the gaps reveal the ghosted hidden edges behind. Alpha is an optional later add.
• Analytic primitives first. For quadrics, silhouettes are exact conics and hidden-line visibility is exact — the hardest module is easier here, not skipped. Triangle meshes then plug in behind the very same interface.
• Author supplies semantics, engine supplies mechanics. The developer marks what matters (importance/focus); the engine draws at the right level of detail.

Architecture at a glance

A scene is a set of FeatureSources. Each frame runs a five-stage pass:

1. Feature extraction — silhouettes, creases, boundaries, suggestive & intersection curves, plus hatch regions.
2. Visibility classification — split each curve into visible/hidden intervals.
3. Abstraction filter — drop sub-threshold detail, consolidate, apply importance.
4. Styling — weight, seeded wobble (lines + hatch), variable stroke width, dash, ghost, hatch density.
5. Emit — sample analytic curves and hand to the backend (SVG first).

Full detail, contracts, and the mesh/organ roadmap live in docs/DESIGN.md. A short phase view is in docs/ROADMAP.md.

Project layout

src/ math/ vectors, Mat3/Mat4, Basis, AABB, Camera + projection/unproject curve/ Curve / Curve2D carriers + exact conic kernel, root solvers, sampler pipeline/ contract types, visibility, styling (wobble/width/hatch), emit, render scene/ the FeatureSource seam + Scene / element / importance model primitives/ analytic primitives (Quadric→Sphere/Ellipsoid/Cylinder/Cone, Plane, Polygon, Line, ParametricCurve, Point, Torus) backend/ renderers — SVG (implemented) mesh/ deferred organ/mesh regime — see docs/DESIGN.md §3
examples/ runnable demos → *.svg (demo, styled, waterline)
docs/DESIGN.md the full design & roadmap

Development

bun install
bun run typecheck
bun run build
bun test

About the author

I like building things that run well; tools that make math visible. Krbn is an open-source attempt; another is AhaBlitz — a game that helps Romanian students prepare for their math exams (Evaluare Națională, Bacalaureat), built on hand-crafted simulators.
